CADdok Connect Pipes Add-In for Revit piping in seconds
The challenge has been around for a long time: How can you model pipes in Revit quickly and accurately? We have developed a workflow that does this job sensationally fast.
Video in youtube
A nice side effect is the reduction of the point cloud data by a factor of 10.

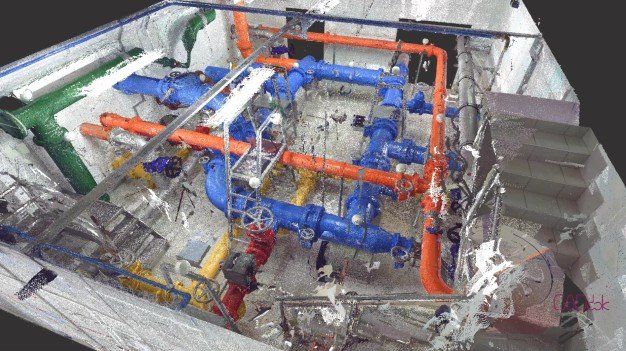

Point clouds are cleaned up by us. This eliminates the scattering points and artifacts.
This is very fast and very accurate.

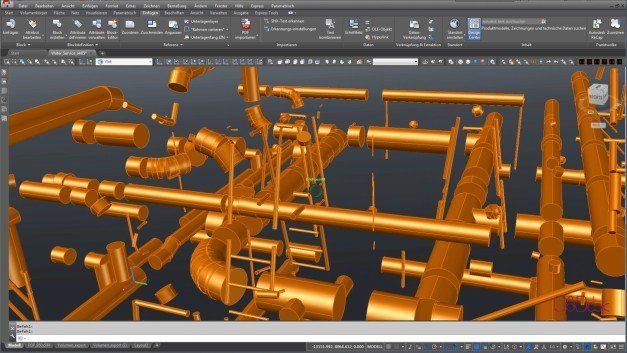

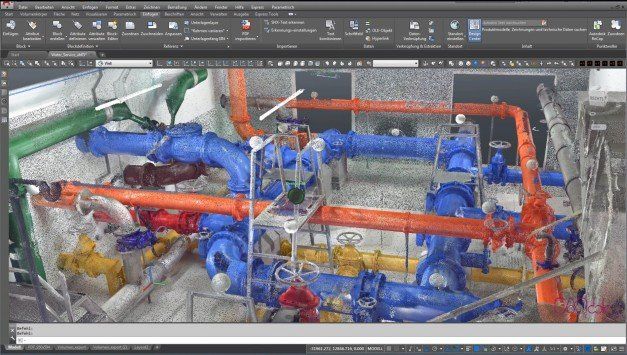

Afterwards the clean point cloud is loaded into AutoCAD and with FARO AsBuilt all recognizable cylinders are extracted.

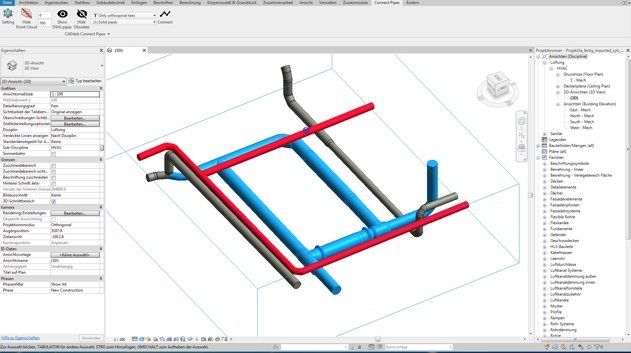

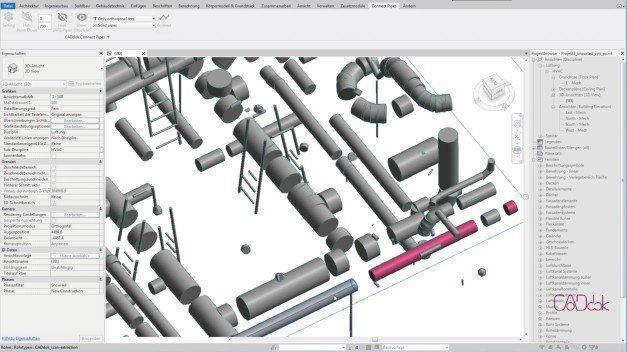

We provide you with the Revit file with the pipes inserted and you can quickly and easily connect the pipes to Revit piping with our CADdok Connect Pipe Add-In.

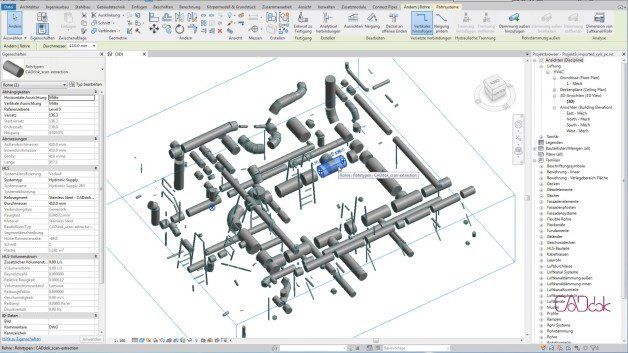

Then these cylinders are transferred to the Autodesk Revit. This step is only possible with special CADdok software.
The CADdok Connect Pipes Add-In is free. But it needs the cylinders we extracted and the prepared Revit file. We need an E57-file for every registered scan and charge EUR 6, - / scan excl. VAT for our preparation. Test it. The risk is minimal at these prices.
Pipelines can be drawn as quickly as never before with the CADdok Add-In. The positional accuracy is optimally maintained.
